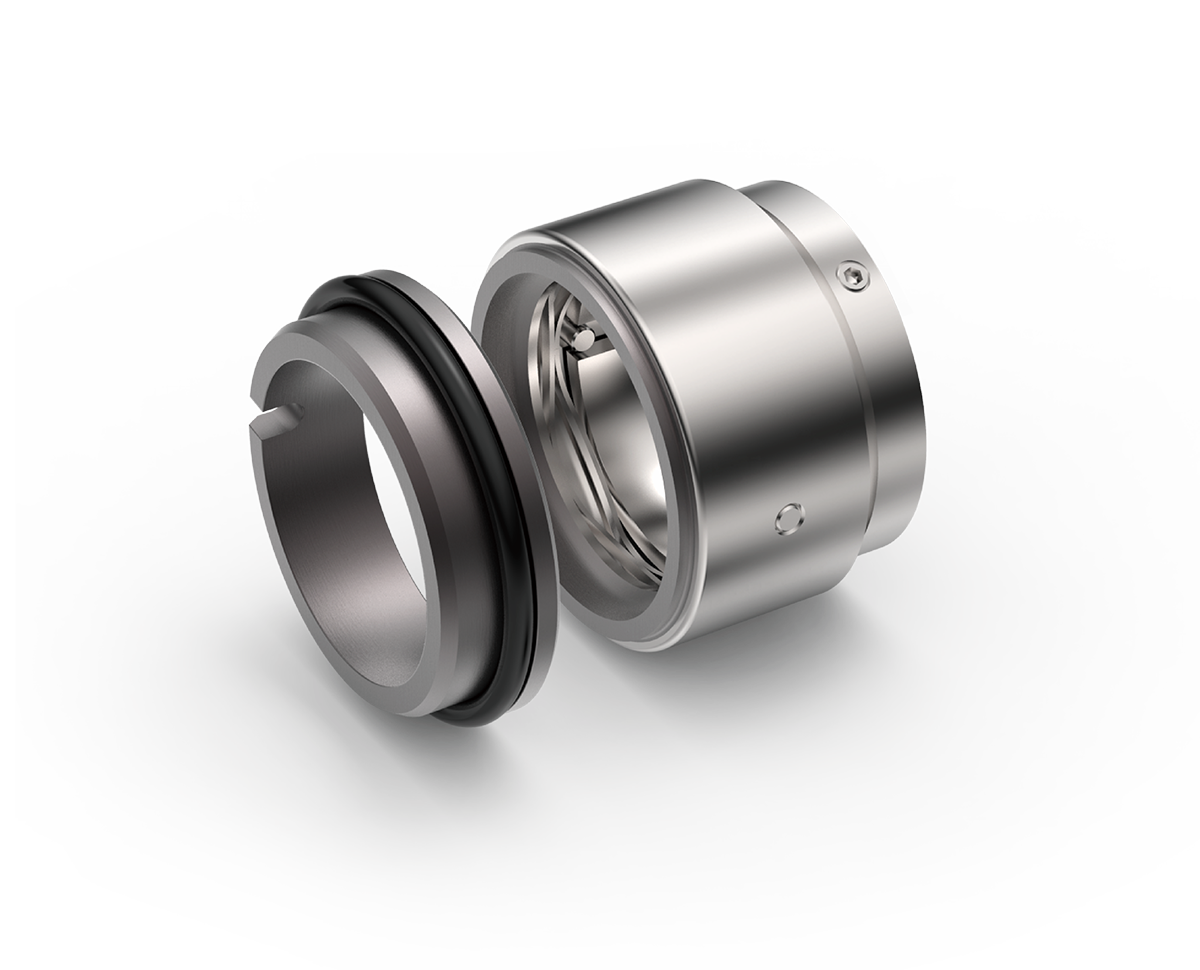

O 型圈式機械密封
工作參數(Operating Conditions)
溫度(Temperature)：-20℃～ +180℃
壓力(Pressure)：≤ 2.5MPa
線速度(Speed)：≤ 15m/s適用介質(Applications)
清水、污水、油及其它中等腐蝕介質
Clean water, sewage water, oil and other moderately corrosive fluids
材料(Materials)
動環(Rotary Ring)：Q1,Q2,U2,B,A
靜環(Seat Ring)：U1,U2,Q1,Q2
輔助密封(Secondary Seal)：V,P,E,M1,M2
彈簧及結構件(Spring and Metal Parts)：F,G,M靜環適合類型(Seat Types)
標準(Standard)：G46
可替換(Alternative)：G90,G6,G4
