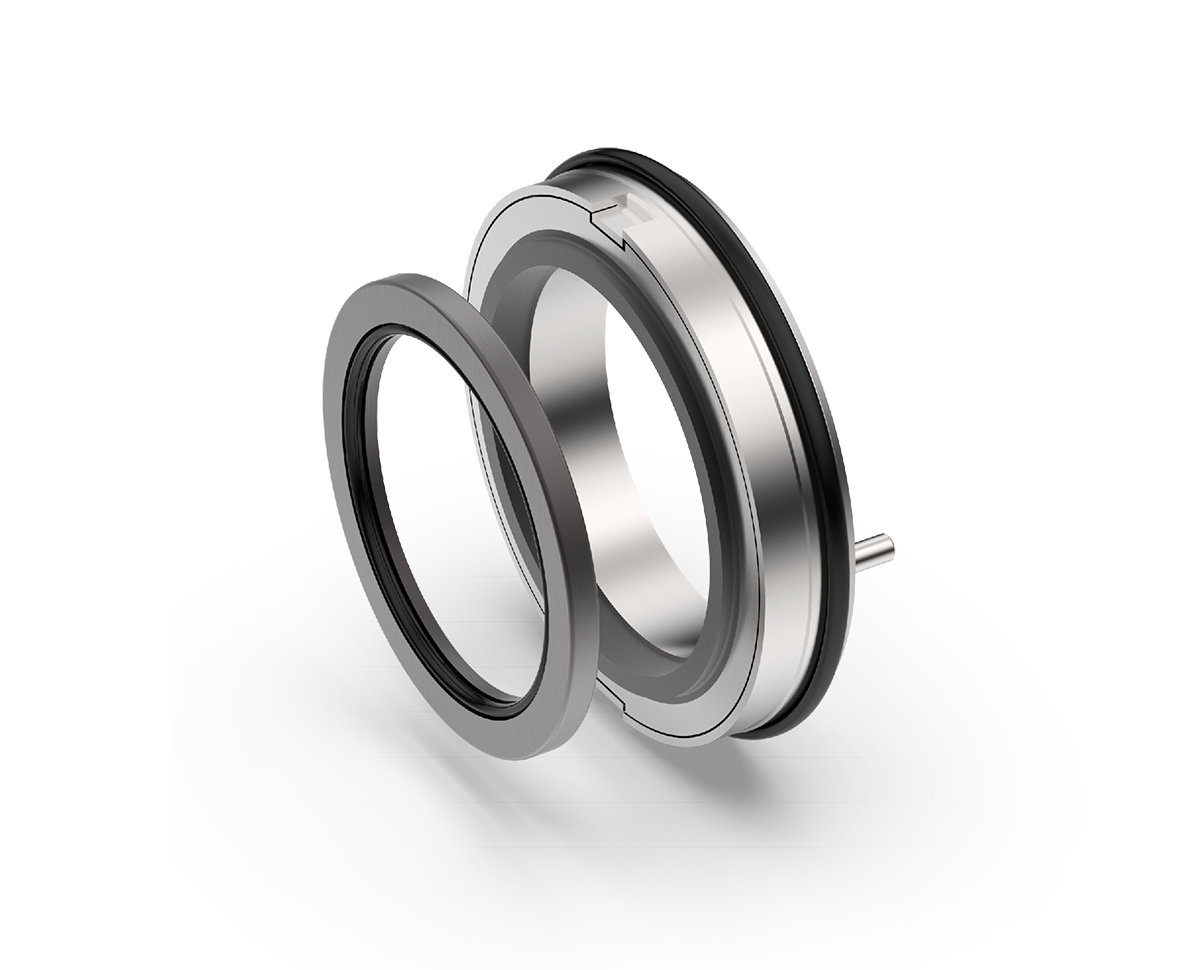

O 型圈式機械密封
工作參數(shù)(Operating Conditions)
溫度(Temperature)：-20℃～ +160℃
壓力(Pressure) ：≤ 4.0MPa
線速度(Speed) ：≤ 25m/s適用介質(Applications)
清水、油及其它弱腐蝕介質
Clean water, oil and other weak corrosive fluids
材料(Materials)
動環(huán)(Rotary Ring)：Q1,Q2,U1,U2
靜環(huán)(Seat Ring)：Q1,Q2,B,A
輔助密封(Secondary Seal)：V,P,E,G
彈簧及結構件(Spring and Metal Parts)：F,G,M
