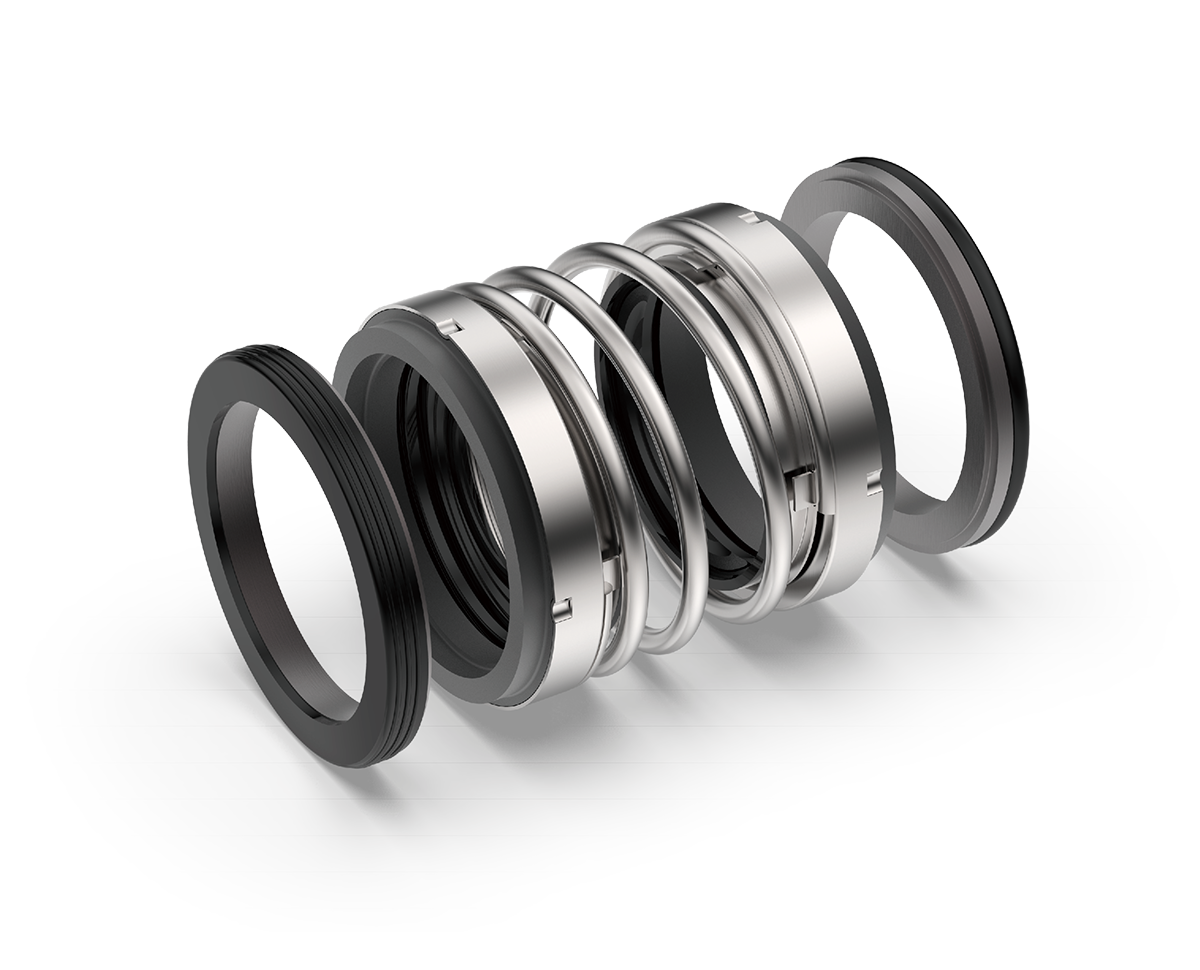

橡膠波紋管式機械密封
工作參數(Operating Conditions)
溫度(Temperature)：≤ +80℃
壓力(Pressure) ：≤ 0.5MPa
線速度(Speed) ：≤ 10m/s適用介質(Applications)
清水、污水、油及其它弱腐蝕介質
Clean water, sewage water, oil and other weak corrosive fluids
材料(Materials)
大氣端動環(Atm. side Rotary Ring)：B
大氣端靜環(Atm. side Seat Ring)： V1
介質端動環(Medium side Rotary Ring)：Q1,Q2,U2
介質端靜環(Medium side SeatRing)：Q1,Q2,U2
輔助密封(Secondary Seal)：V
彈簧及結構件(Spring and Metal Parts)：F靜環適合類型(Seat Types)
標準(Standard)：G60
可替換(Alternative)：G6,G4,G50
